MAD

Multiple Assembly Dial

Clear
$

General

MAD Series Introduction:

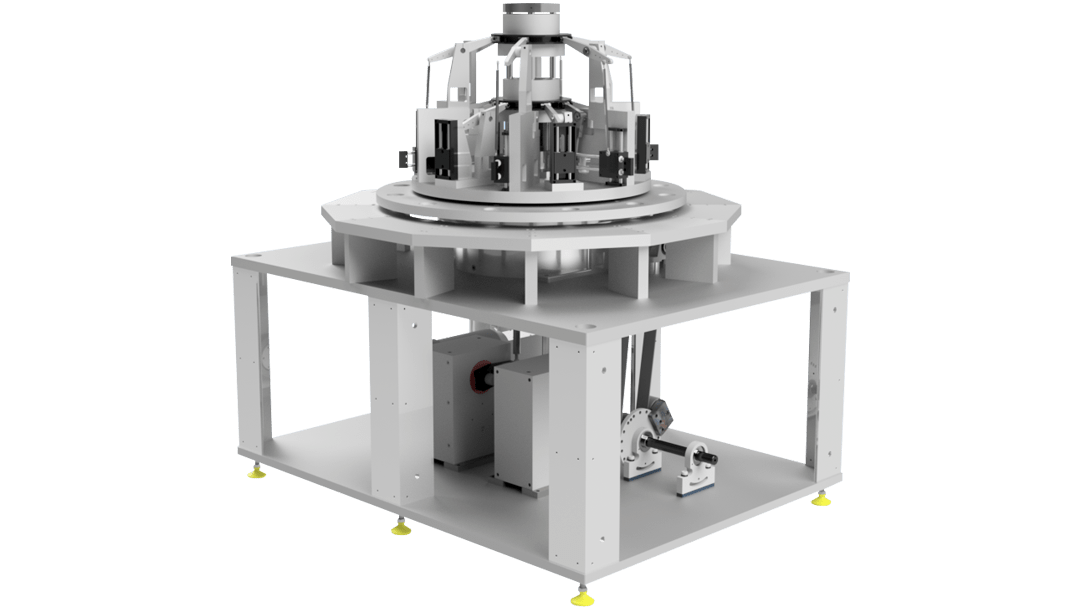

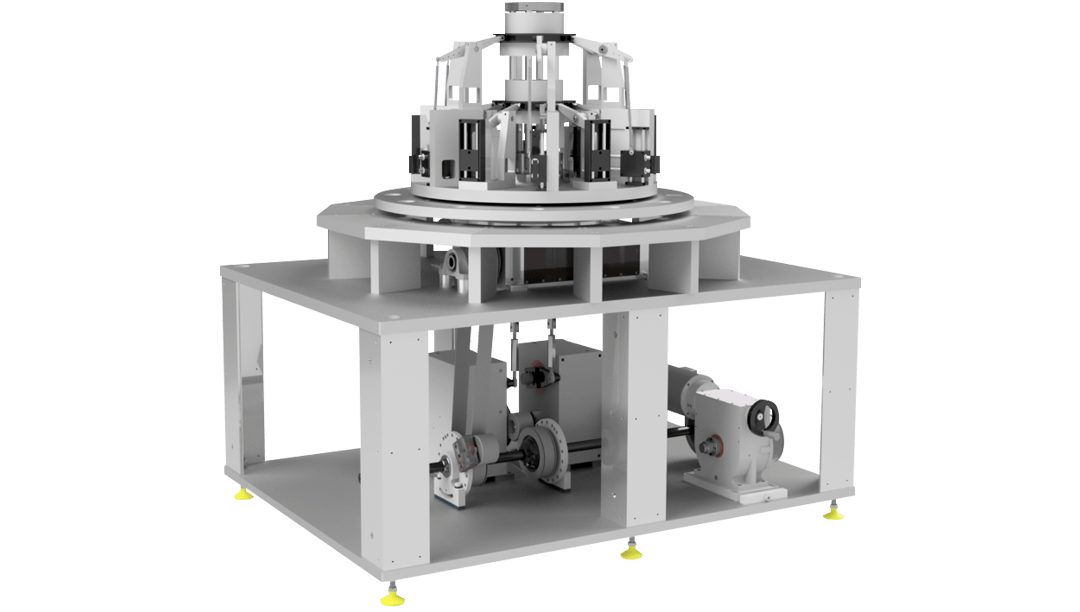

The Mad Chassis is Stelron’s latest rotary dial assembly machine. Similar to the well-known and trusted RAD Chassis, Stelron has further developed this technology to meet new industry requirements.


Standard Features:

  • Inboard and outboard stationary dial plates
  • Inboard and outboard stations available
  • Easy integration
  • Custom machining to all plates at no extra cost
  • Medical and clean room versions available
  • Rugged, highly accurate, all rolling contact, MD Series Dial Indexer at the foundation of the chassis
  • Integrally supported stationary dial plate ideal for mounting robotics
  • Large center through-hole running pneumatic, hydraulic lines and electric wiring/cabling
  • Available in three sizes

General:

At the heart of the MAD Chassis is the MD Series Dial Indexer. With its low-profile design, it is ideal for mounting stations in and outboard of the dial plates, as well as for mounting robots in the center or overhead. The larger pitch diameter of the cam followers, makes this chassis the most accurate for large dial applications. The MAD Chassis is offered as asynchronous, completely programmable “servo-ready”, or synchronous with the dial and all cam-actuated stations driven from one motor and gear reducer. The versatility of this assembly chassis is unmatched by competitors.

Size & Range:

Depending on application requirements, the MAD Chassis can be built around any of the three sizes of MD Indexers. Up to twenty-four stations are available in a type one cam, and special indexing motion sequences are offered. Table and plate sizes are completely customizable and manufactured to meet customer specifications.

Construction:

The MAD Chassis is similar in construction to the widely accepted Stelron RWB and PLC Chassis. The rugged one-piece design consists of precision machined bottom, top, stationary and rotating dial plates. These precision surfaces provide for the convenient mounting of customer tooling as well as the mounting of synchronized and non-synchronized ancillary components

Technical

SPEED FACTORS
INDEXES PER MIN 25 50 75 100 200 500
FACTOR Cs .8 1.0 1.12 1.25 1.4 2.0
LIFE FACTORS
LIFE(1000-hrs) 4 8 12 16 24 40
FACTOR Cl .8 1.0 1.12 1.25 1.4 1.6
OUTPUT BEARING MOMENT RATING (Inch-lbs)
MODEL MD-1 MD-2 MD-3
STATIC 138,700 237,200 362,000
DYNAMIC 64,900 98,300 136,200
OUTPUT BEARING THRUST RATING (Inch-lbs)
MODEL MD-1 MD-2 MD-3
STATIC 53,350 69,770 86,180
DYNAMIC 23,180 25,510 29,300
SERVO ~ CONSTANT LEAD SERIES
RATIO MOTION MD-1 MD-2 MD-3
6:1 CV 8,360 19,350 52,900
8:1 CV 10,150 23,800 65,100
12:1 CV 10,120 24,100 66,000
16:1 CV 11,580 27,800 76,300
INT. INERTIA lb-in² 1,350 27,800 76,300
PITCH RAD. ROLLERS 5.500 7.500 9.500
STANDARD SEQUENCES AND CAPACITIES
Number of Stops Indexer period “Tr” B10 @ 50 IND/MIN (in-lbs)
MD-1 MD-2 MD-3
4 270° 4,640 8,180 18,160
6 180° 5,310 9,365 20,780
6 270° 8,480 19,490 53,230
8 150° 6,600 7,890 13,590
8 180° 6,840 12,130 25,960
8 270° 10,520 24,450 66,880
12 90° 6,690 11,790 26,180
12 120° 10,490 23,990 65,570
12 150° 10,810 24,950 68,180
12 180° 10,930 25,440 69,570
12 270° 10,750 24,440 69,700
16 90° 8,610 15,280 30,860
16 120° 13,160 30,460 83,280
16 150° 13,270 30,980 84,790
16 180° 13,160 30,980 84,890
16 270° 12,470 29,780 81,700
24 90° 11,760 21,210 47,200
24 120° 11,690 21,340 47,560
24 150° 11,410 21,010 69,850
24 180° 11,070 38,990 68,220
24 270° 14,880 35,890 62,800
ALL OF THE ABOVE SEQUENCES USE MODIFIED SINE MOTION
